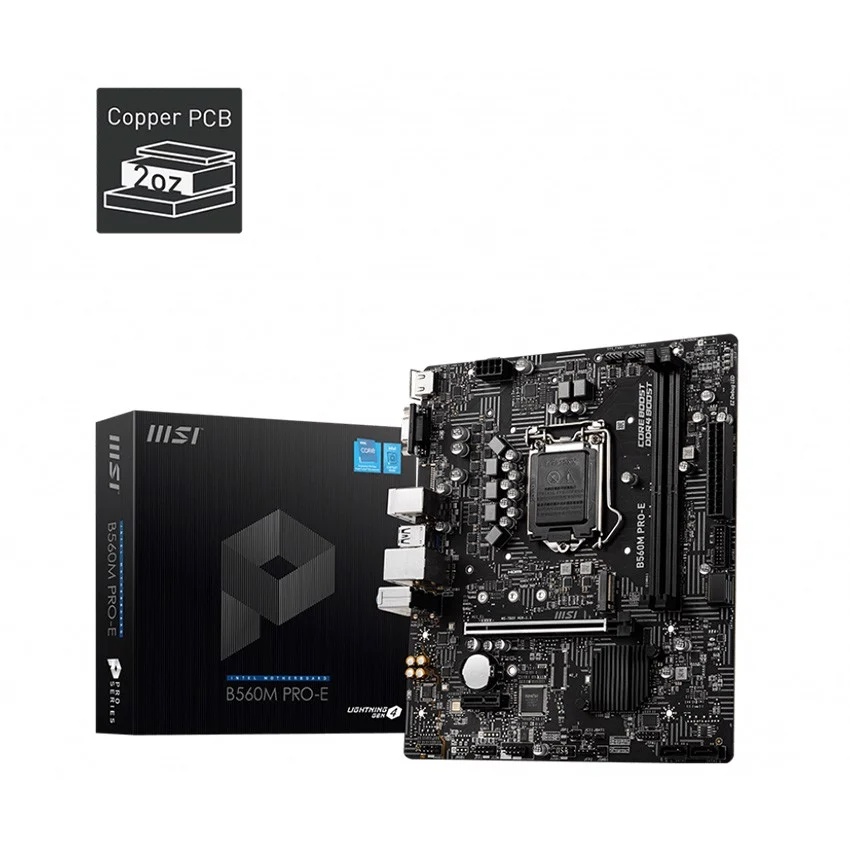

Giới thiệu [Mã ELHAMS5 giảm 6% đơn 300K] Mainboard MSI B560M PRO-E Bảo Hành Chính Hãng 36 Tháng

- Sản phẩm: Bo mạch chủ
- Tên Hãng: MSI
- Model: B560M PRO-E
- CPU hỗ trợ: Intel
- Chipset: B560
- RAM hỗ trợ
• 2x DDR4 memory slots, support up to 64GB
• Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
• Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
• Max overclocking frequency:
• 1DPC 1R Max speed up to 4800 MHz
• 1DPC 2R Max speed up to 4600+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memorySupports Intel® Extreme Memory Profile (XMP)
Khe cắm mở rộng:
• 1x PCIe x16 slot (From CPU)
• Support up to PCIe 4.0 for 11th Gen Intel® CPU
• Support up to PCIe 3.0 for 10th Gen Intel® CPU
• 1x PCIe 3.0 x1 slot (From PCH)
Ổ cứng hỗ trợ:
• 4x SATA 6Gb/s ports (From B560 Chipset)
• 1x M.2 slot (Key M)
• M2_1 slot (From B560 Chipset)
• Supports up to PCIe 3.0 x4
• Supports 2242/ 2260/ 2280 storage devices
Cổng kết nối (Internal):
• 1x 24-pin ATX main power connector
• 1x 8-pin ATX 12V power connector
• 4x SATA 6Gb/s connectors
• 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
• 1x 4-pin CPU fan connector
• 1x 4-pin system fan connector
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Serial port connector
• 1x Chassis Intrusion connector
• 1x Clear CMOS jumper
• 1x TPM module connector
Cổng kết nối (Back Panel):
• 1 x HDMI
• 1 x PS2
• 1 x LAN port
• 1 x Audio connector
• 4 x USB 2.0
• 1 x VGA
• 2 x USB 3.2 Gen 1 5Gbps Type A
- LAN / Wireless: 1x Intel® I219V 1Gbps LAN controller
- Kích cỡ: mATX Form Factor9.29 in. x 7.95 in. (23.6 cm x 20.2 cm)
- Bảo hành: 36
