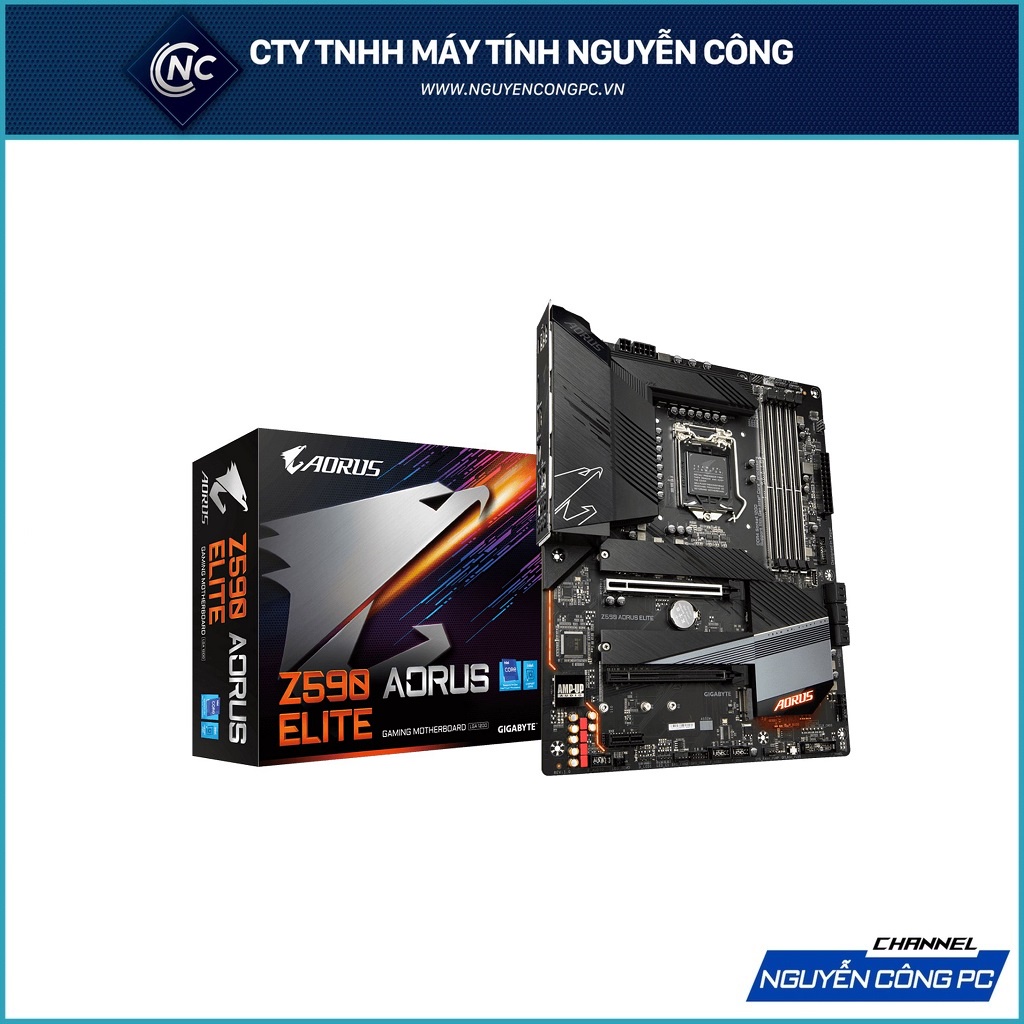

Giới thiệu Mainboard GIGABYTE Z590 AORUS ELITE

CPU hỗ trợ

11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*


* Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family.
L3 cache varies with CPU

Chipset

Intel® Z590 Express Chipset

RAM hỗ trợ

11th Generation Intel® Core™ i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules


10th Generation Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules


10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules


4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Cổng xuất hình onboard

Integrated Graphics Processor-Intel® HD Graphics support:


1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz


* Support for DisplayPort 1.2 version and HDCP 2.3.


(Graphics specifications may vary depending on CPU support.)

Âm Thanh

Realtek® ALC1220-VB codec
* The back panel line out jack supports DSD audio
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out
LAN

Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Khe cắm mở rộng

1 x PCI Express x16 slot, running at x16 (PCIEX16)


* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
*Supported by 11th Generation processors only.


1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

Đa Card màn hình

Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Ổ cứng hỗ trợ

CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)*
*Supported by 11th Generation processors only.

Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2B_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB)
6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready

USB

Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen2 Type-A ports (red) on the back panel
5 x USB 3.2 Gen1 ports (3 ports on the
