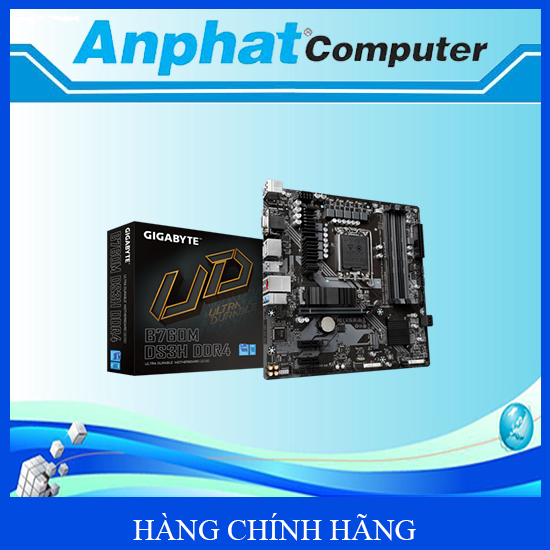

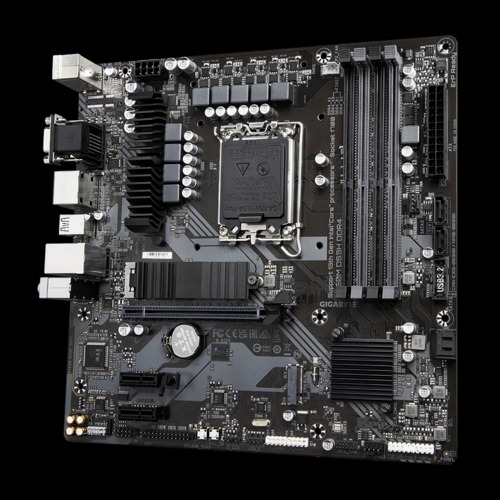

Giới thiệu Mainboard Gigabyte B760M DS3H DDR4 Socket LGA1700 - Hàng Chính Hãng

• CPU
  1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
  2. L3 cache varies with CPU
  (Please refer "CPU Support List" for more information.)
• Chipset
  1. Intel B760 Express Chipset
• Bộ nhớ
  1. Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
  2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
  3. Dual channel memory architecture
  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  6. Support for Extreme Memory Profile (XMP) memory modules
  (Please refer "Memory Support List" for more information.)
• Card đồ họa tích hợpIntegrated Graphics Processor-Intel HD Graphics support:
  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
     * Support for HDMI 2.1 version and HDCP 2.3.
     ** Support native HDMI 2.1 TMDS compatible ports.
  3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
     * Support for DisplayPort 1.2 version and HDCP 2.3
  4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
     * Support for DisplayPort 1.2 version.
  (Graphics specifications may vary depending on CPU support.)

  Support for up to quad-display at the same time
• Âm thanh
  1. Realtek Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  4. Support for S/PDIF Out
• LAN
  1. Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Khe cắm mở rộngCPU:
  1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
     * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
  Chipset:
  1. 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
• Giao diện lưu trữCPU:
  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
  Chipset:
  1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
  2. 4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
• USBChipset:
  1. 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
  2. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
  3. 2 x USB 2.0/1.1 ports on the back panel
  Chipset+2 USB 2.0 Hubs:
  1. 4 x USB 2.0/1.1 ports available through the internal USB headers
• Kết nối I/O bên trong
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 3 x system fan headers
  5. 1 x addressable LED strip header
  6. 1 x RGB LED strip header
  7. 2 x M.2 Socket 3 connectors
  8. 4 x SATA 6Gb/s connectors
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x USB 3.2 Gen 1 header
  12. 2 x USB 2.0/1.1 headers
  13. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  14. 1 x serial port header
  15. 1 x parallel port header
  16. 1 x S/PDIF Out header
  17. 1 x Q-Flash Plus button
  18. 1 x reset button
  19. 1 x reset jumper
  20. 1 x Clear CMOS jumper

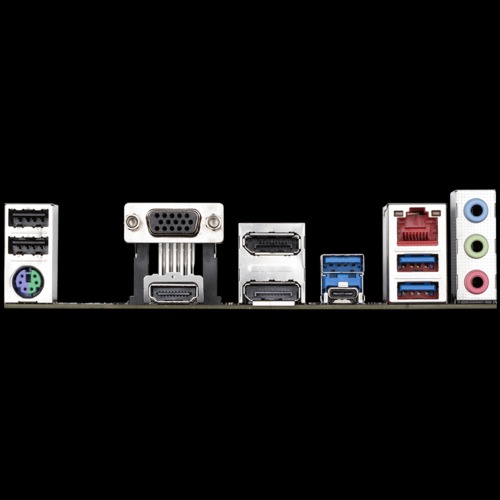

• Kết nối bảng phía sau
  1. 2 x USB 2.0/1.1 ports
  2. 1 x PS/2 keyboard/mouse port
  3. 1 x D-Sub port
  4. 1 x HDMI port
  5. 2 x DisplayPorts
  6. 3 x USB 3.2 Gen 1 ports
  7. 1 x USB Type-C port, with USB 3.2 Gen 2 support
  8. 1 x RJ-45 port
  9. 3 x audio jacks
• Điều khiển I/O
  1. iTE I/O Controller Chip
• Theo dõi phần cứng
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Water cooling flow rate detection
  5. Fan fail warning
  6. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 1 x 128 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Tính năng duy nhất
  1. Support for GIGABYTE Control Center (GCC)
     * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  2. Support for Q-Flash
  3. Support for Q-Flash Plus
• Gói phần mềm
  1. Norton Internet Security (OEM version)
  2. LAN bandwidth management software
• Hệ điều hành
  1. Support for Windows 11 64-bit
  2. Support for Windows 10 64-bit
• Hệ số khuôn
  1. Micro ATX Form Factor; 24.4cm x 24.4cm
