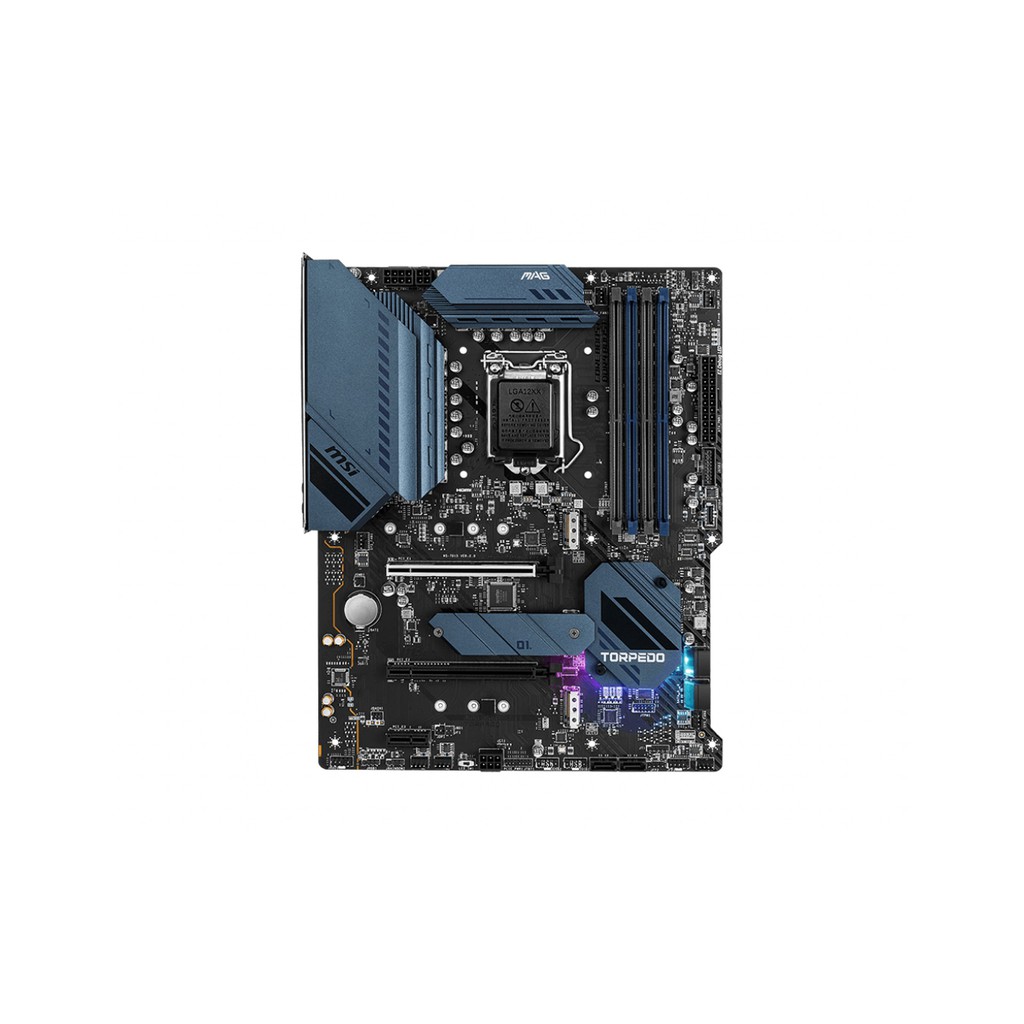

Giới thiệu Bo Mạch Chủ Máy Tính Mainboard MSI MAG B560 Torpedo Hàng Chính Hãng

RAM hỗ trợ :
4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5066 MHz
1DPC 2R Max speed up to 4600+ MHz
2DPC 1R Max speed up to 4266+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
Khe cắm mở rộng :
2x PCIe x16 slots
PCI_E1 (from CPU)
Support up to PCIe 4.0 for 11th Gen Intel® CPU
Support up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E2 (from B560 chipset)
Support up to PCIe 3.0 x4
1x PCIe 3.0 x1 slot (from B560 chipset)
Ổ cứng hỗ trợ :
6x SATA 6Gb/s ports (from B560 chipset)
3x M.2 slots (Key M)
M2_1 slot (from CPU)
Available only on 11th Gen Intel® CPU
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21 slot (from B560 chipset)
Supports up to PCIe 3.0 x4
Supports SATA up to 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_3 slot (from B560 chipset)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices
Cổng Kết Nối :
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
5x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector (supports RTD3)
1x Tuning Controller connector
Cổng kết nối (Back Panel) :
1 x HDMI
1 x 2.5G LAN port
1 x gigabit LAN port
1 x Audio connector
4 x USB 2.0
1 x DP
4 x USB 3.2 Gen 1 5Gbps Type A
1 x USB 3.2 Gen 2x2 20Gbps Type c
1 x Optical S/PDIF OUT
Lan/Wireless :
1x Realtek® RTL8125B 2.5Gbps LAN controller
1x Intel® I219V 1Gbps LAN controller
