Giới thiệu Điều Khiển Từ Xa 433 MHZ - 12V

Thông tin sản phẩm
Tên sản phẩm: Điều Khiển Từ Xa 433 MHZ - 12V
Thông số kỹ thuật:
Điện áp hoạt động: DC 12V
Nhiệt độ hoạt động: -40 ~ 80 độ
Tần số hoạt động: 433 mhz
Nhận được độ nhạy: ≥-95dB

Mô tả sản phẩm
Features:
1. This controller is controlled by intelligent microprocessor, which can be used in the control of garage door, lighting control, curtain control, door control system, etc.
2. Easy to install, small size, safe and reliable.

Specifications:
Operating voltage: DC 12V
Operating temperature: -40~80 degrees
Operating frequency: 433MHZ
Receive sensitivity: ≥-95dB
Working Mode: jump switch, point action, self locking, and interlocking(adjustable)
Remote control distance: 20-40m/65.61-131.23ft
Product size:
Switch size: approx. 40 x 40 x 25mm/1.57 x 1.57 x 0.98in
Remote Control size: approx. 55 x 30 x 12mm/2.16 x 1.18 x 0.47in
Product weight:
Control panel weight: approx. 24g
Remote control weight: approx. 30g
Material: ABS

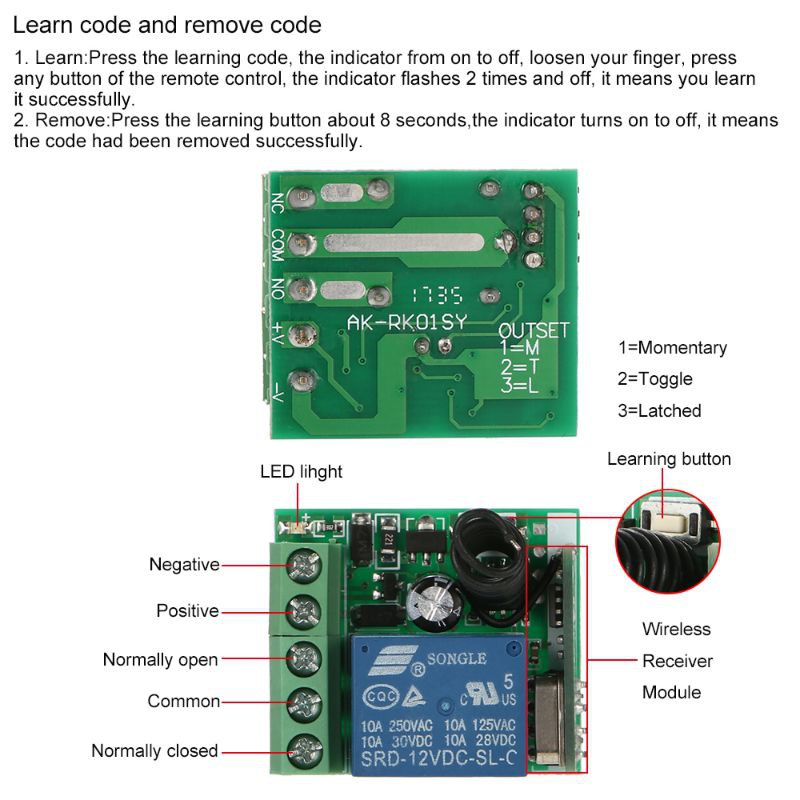

Operation Manual:
Press the learn button for 2 or 3 seconds, lights out (that has entered the state of learning), Release the learning button, press any key of the remote control, and the indicator light flashes 5 times to show the success of the study.
Note: The controller can learn the fixed code / learning code, total 16 different encoding, arbitrary button remote control, and beyond will be cleared in the early learning of remote control.

Removal method:
Continue to hold down the learning button for about 8 seconds. The indicator light is extended from extinction to success.

Work mode switching:
Connect a 12V DC output: the learning of the single remote control switch 12V input, connect a 12V DC power supply, the output from 12V positive public end, often beginning the positive on the output side of the light bulb, the bulb of the cathode received power of the cathode, a simple control light bulb circuit is designed.

Gói sản phẩm bao gồm:
1 x Mạch điều khiển 433 Mhz 1 kênh
1 x Remote 433 Mhz
