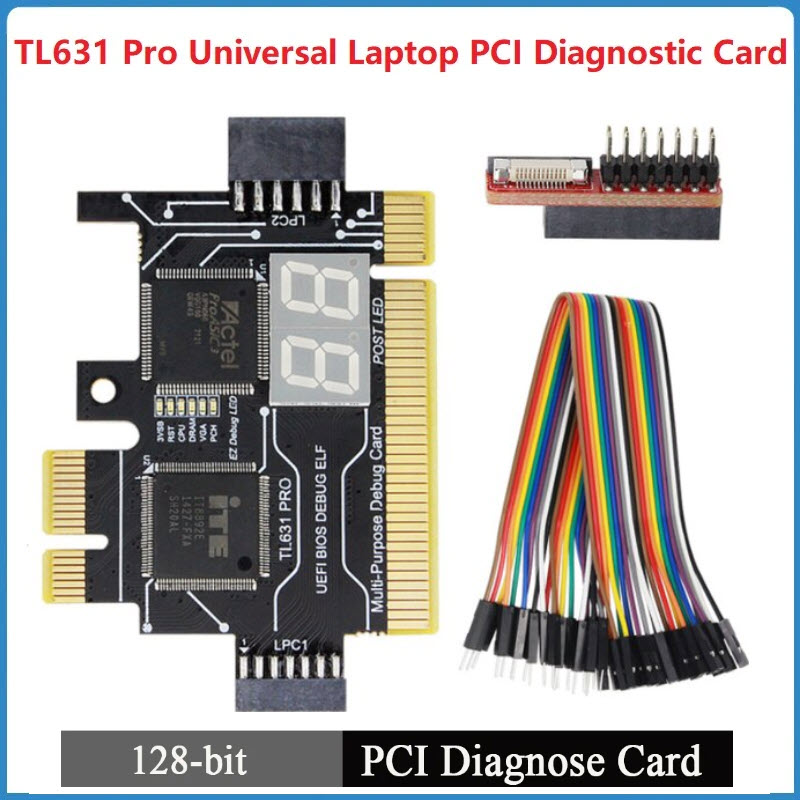

Giới thiệu Card Phân Tích Chẩn Đoán Lỗi Bàn Phím PCI Laptop Phổ Biến TL631 PRO. Card test main PC, Laptop TL631 PRO Bản 2022. TL631 Pro Diagnostic Card Universal Laptop PCI Expansion Card PCI-E Mini LPC Motherboard Diagnose Analyzer Tester Debug Cards

Card Phân Tích Chẩn Đoán Lỗi Bàn Phím PCI Laptop Phổ Biến TL631 PRO. Card test main PC, Laptop TL631 PRO Bản 2022. TL631 Pro Diagnostic Card Universal Laptop PCI Expansion Card PCI-E Mini LPC Motherboard Diagnose Analyzer Tester Debug Cards

1. TL631 PROuses the new 130-nanometer actel ProASIC3 flash memory series chip with a new pure system. Inherit the family design language style.

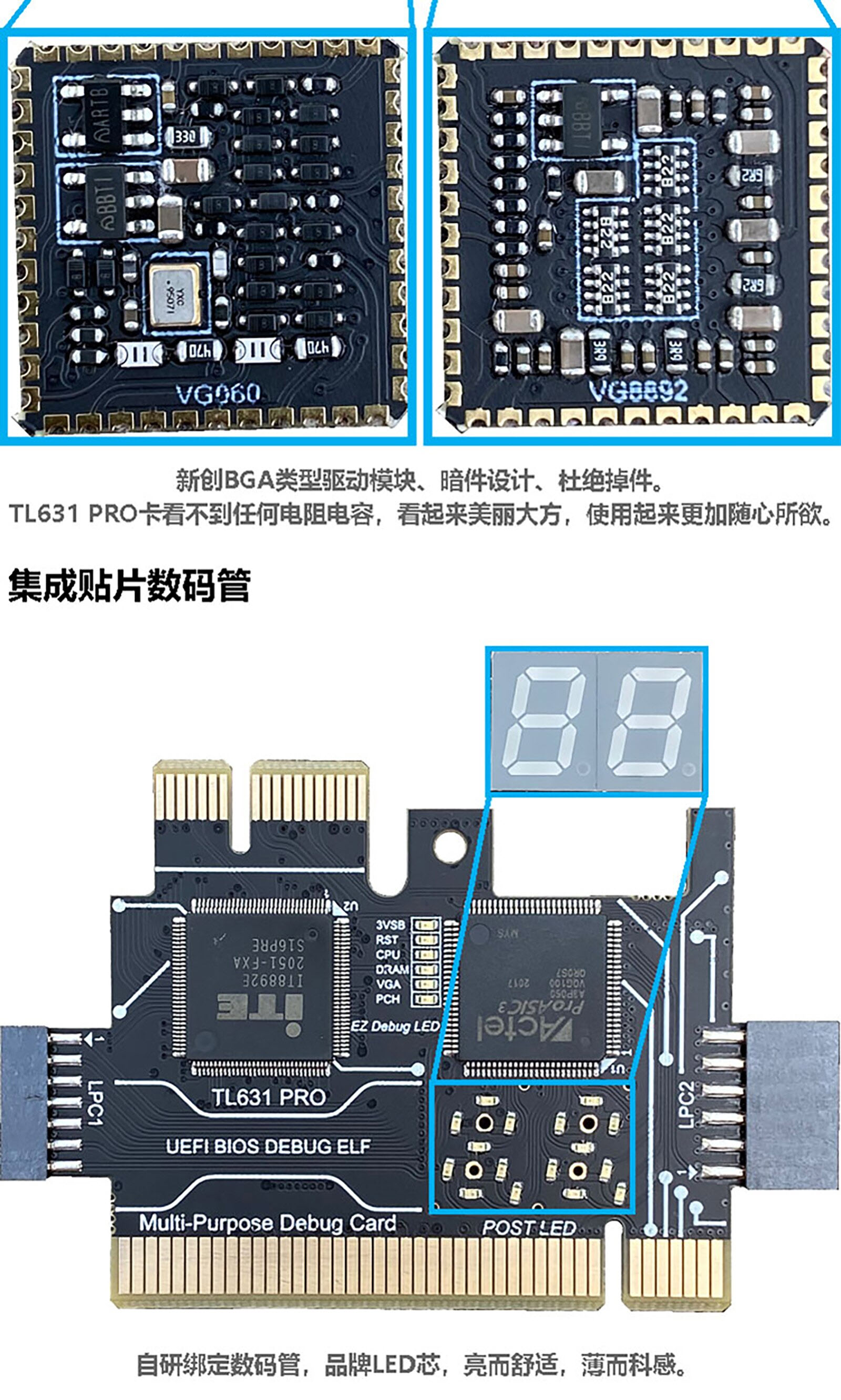

2. Gemini drive module: BGA type driver module, hidden part design.
3. The TL631 PRO card does not see any resistance and capacitance, it looks beautiful and generous. Use it more freely.
4. Integrated patch digital tube: Self-developed binding digital tube, LED core, bright and comfortable, thin and scientific sense.
Different batches, product appearance and color may be different, does not affect the use

Colour: Black
Material: PCB
TL631 Pro interface description:

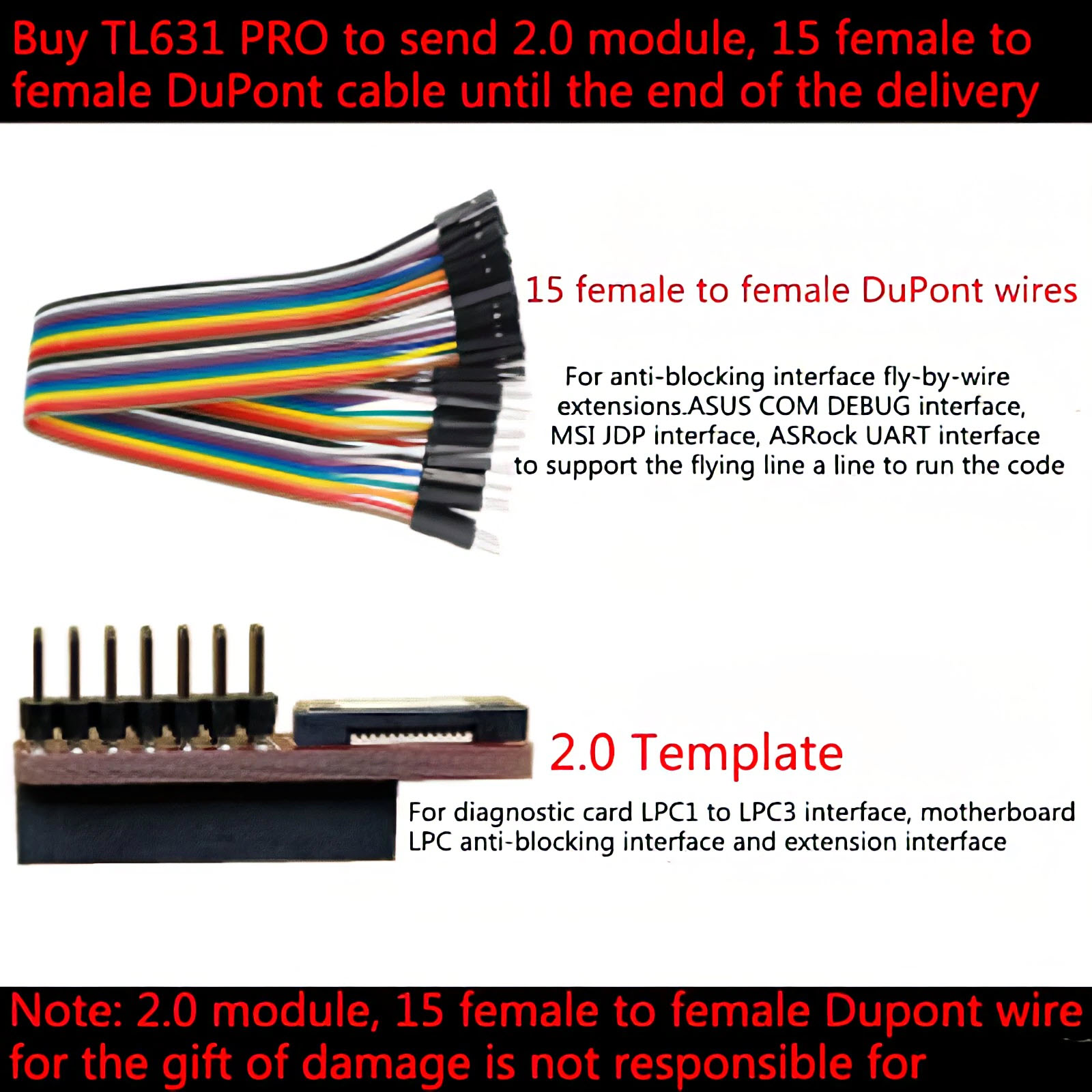

1: LPC1 shared high-speed channel = connect to the motherboard 2.0 small pin LPC interface, 2.0 module

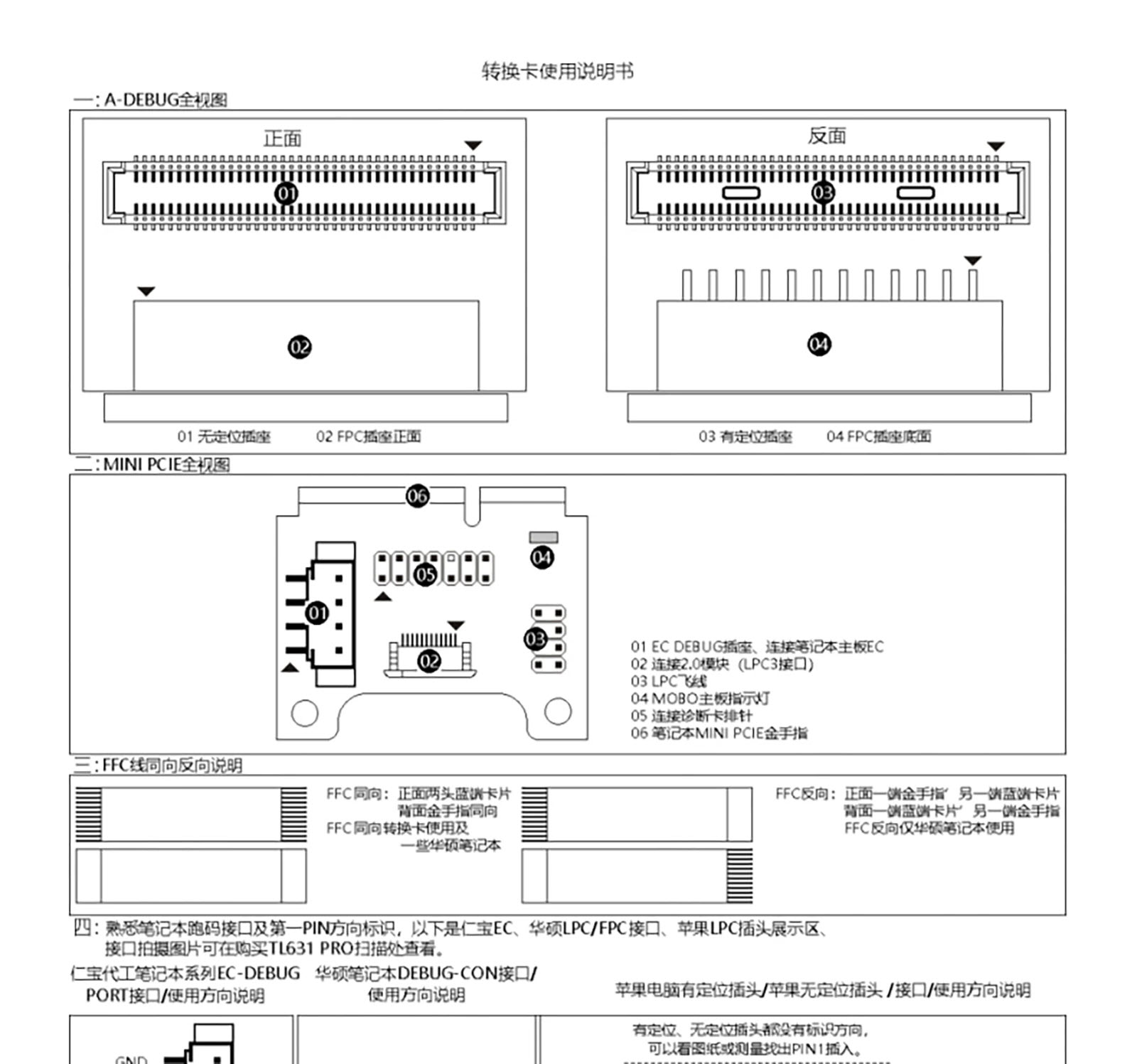

(Module expansion LPC3 interface can connect notebook MINI PCIE conversion card, A-DEBUG conversion card, notebook DEBUG-CON. EC-DEBUG).
2:PCI high-speed channel = support all PCI slots.
3:LPC2 shared high-speed channel = connect to the motherboard 2.54 large pin LPC interface, COM-DEBUG. ASRock UART1, MSI JDP, SuperMicro-SPl.
4:PCIE X1 high-speed channel = support Gigabyte without PCI motherboard (other brands do not support).
5:3VSB power indicator, to detect whether the power is normal.
6:RST reset indicator, to detect whether the motherboard reset is normal (only when PCI or PCIE is inserted)
7:CPU indicator light, to detect whether the CPU module is normal.
8:DRAM memory indicator, to detect whether the memory module is normal.
9:VGA graphics indicator light, to detect whether the graphics card module is normal.
10:PCH south bridge indicator light, to detect whether the south bridge module is normal.
11:DP decimal point, CLK signal display.
12:DP decimal point, FRAME frame signal display.
13: threading hole

Features:
Small and exquisite, 128-bit large-capacity chip, high encryption standard.
Newly innovated BGA type driver module, prevents drop parts, looks beautiful and elegant, and can be used more freely.
Self-developed binding digital tube, quality LED core, bright and comfortable, thin and scientific.
LPC1 high-speed shared channel, connect to the motherboard 2.0 small pin header LPC interface, 2.0 module (module expansion LPC3 interface which can be connected to notebook MINI PCIE conversion card, A-DEBUG conversion card, notebook DEBUG-CON, EC-DEBUG)
PCI high-speed channel, support all PCI slots.
LPC2 shared high-speed channel, connect to the motherboard 2.54 large pin LPC interface, COM-DEBUG, ASRock UART1, MSI JDP, Supermicro SPl.
PCIE X1 high-speed channel, support Gigabyte no PCI motherboard (other brands do not support).
3VSB power indicator to detect whether the power is normal.
RST reset indicator to detect whether the motherboard reset is normal (only when PCI or PCIE is inserted)
CPU indicator light to detect whether the CPU module is normal.
DRAM memory indicator to detect whether the memory module is normal.
VGA graphics indicator light to detect whether the graphics card module is normal.
PCH indicator light to detect whether the southbridge module is normal.
CLK signal display, FRAME frame signal display.
