Giới thiệu IC khuếch đại âm thanh TA8210 (hàng tháo máy)

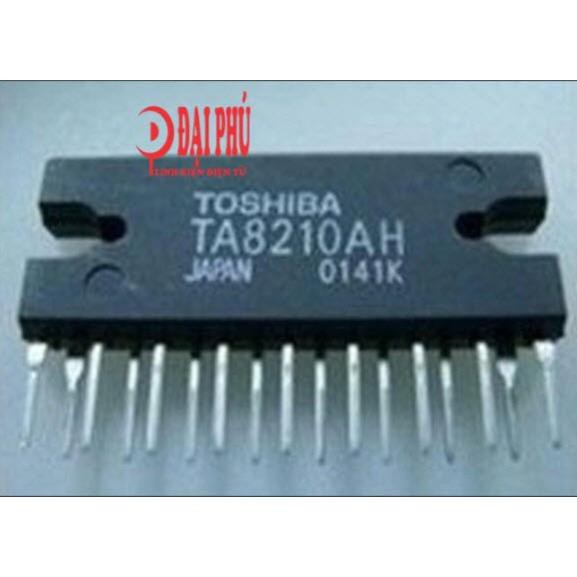

IC khuếch đại âm thanh TA8210 (hàng tháo máy)
Low thermal resistance
: θj−T = 1.5°C / W (infinite heat sink)
· High power
: POUT (1) = 22W (typ.) / channel
(VCC = 14.4V, f = 1kHz, THD = 10%, RL = 4Ω)
POUT (2) = 19W (typ.) / channel
(VCC = 13.2V, f = 1kHz, THD = 10%, RL = 4Ω)
Weight
HZIP17−P−2.00: 9.8g (typ.)
HSIP17−P−2.00: 9.8g (typ.)
· Low distortion ratio: THD = 0.04% (typ.) (VCC = 13.2V, f = 1kHz, POUT = 1W, RL = 4Ω, GV = 50dB)
· Low noise: VNO = 0.30mVrms (typ.) (VCC = 13.2V, RL = 4Ω, GV 50dB, Rg = 0Ω, BW = 20Hz~20kHz)
· Built−in stand−by function (with pin(4) set at low, power is turned off.): ISB = 1µA (typ.)
· Built−in muting function (with pin(1) set at low, power is turned off.): V (mute) = 1V (typ.)
· Built−in various protection circuits
Protection circuits: Thermal shut down, Over voltage, Out→VCC short, Out→GND short and Out−Out short.
· Operating supply voltage: VCC = 9~18V
